Automatic roll-bending beading machines SDS3600

New

  • Rouleuse moulureuse auto ,1 moulure ,largeur 1000,capacité acier 1 mm

    Click to enlarge

  • Rouleuse moulureuse auto ,1 moulure ,largeur 1000,capacité acier 1 mm - Arriere machine

    Click to enlarge

  • Rouleuse moulureuse auto ,1 moulure ,largeur 1000,capacité acier 1 mm - Arriere machine avec table

    Click to enlarge

  • Rouleuse moulureuse auto ,1 moulure ,largeur 1000,capacité acier 1 mm - Vue CN1

    Click to enlarge

  • Rouleuse moulureuse auto ,1 moulure ,largeur 1000,capacité acier 1 mm - Vue CN2

    Click to enlarge

  • Rouleuse moulureuse auto ,1 moulure ,largeur 1000,capacité acier 1 mm - Zoom molettes

    Click to enlarge

  • Rouleuse moulureuse auto ,1 moulure ,largeur 1000,capacité acier 1 mm - Emplacement molettes

    Click to enlarge

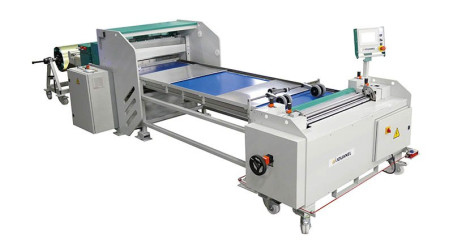

  • Rouleuse moulureuse auto ,1 moulure ,largeur 1000,capacité acier 1 mm - Machine complete

    Click to enlarge

Automatic beading and rolling machine, 1000mm wide, 1mm steel, 60mm Ø rollers

Ref. SDS3600-60

Price and lead time: please contact us

Automatic roll-bending beading machine, reference SDS3600-60, useful working width 1m, 1.0mm steel capacity. Equipped with a numerical control, it rolls and makes side beads of two types: V and R (necking) depending on the used rolls (optional), Ø 4, 6, or 8 mm to be specified with the order

More info Optional complementary equipment

Automatic beading and rolling machine, 1000mm wide, 1mm steel, 60mm Ø rollers

Product features

Useful width (mm)

1 000

Ø rolls (mm)

60

Maximum capacity Stainless Steel (mm)

0,8

Maximum capacity Aluminium Isoxal (mm)

1,2

Maximum capacity Steel S235JR (mm)

1,0

Minimum pipe Ø (mm) (Acc. to material and thickness)

100

Maximum pipe Ø (mm) (Acc. to material and thickness)

950
Power supply (V)* 400V 3-ph + neutral

Power (kw)

0,98

Dimensions (L x l x h) (mm)

2 050 x 900 x 1 400
Weight (kg) 600
* Voltage choice to signal at the order



Optional complementary equipment

Jeu de molettes V4 pour SDS3600-60

Set of rolls V4 for SDS3600-60

Set of rolls Type V4, reference SDS360060MOLV4, Ø 4 mm bead for automatic beading and rolling machines SDS3600-60 (60 mm Ø rollers) and SDS3600-60-125 (60 mm Ø rollers, useful width is max. 1250 mm)



Add to my cart
for a quotation request
Jeu de molettes V6 pour SDS3600-60

Set of rolls V6 for SDS3600-60

Set of rolls Type V6, reference SDS360060MOLV6, Ø 6 mm bead for automatic beading and rolling machines SDS3600-60 (60 mm Ø rollers) and SDS3600-60-125 (60 mm Ø rollers, useful width is max. 1250 mm)



Add to my cart
for a quotation request
Jeu de molettes V8 pour SDS3600-60

Set of rolls V8 for SDS3600-60

Set of rolls Type V8, reference SDS360060MOLV8, Ø 8 mm bead for automatic beading and rolling machines SDS3600-60 (60 mm Ø rollers) and SDS3600-60-125 (60 mm Ø rollers, useful width is max. 1250 mm)



Add to my cart
for a quotation request
Jeu de molettes V4 pour assemblage avec molette de rétreint pour SDS3600-60

Set of rolls V4 to match with necking rolls, for SDS3600-60

Set of rolls Type V4, reference SDS360060MOLV4R, Ø 4 mm bead, to match with necking rolls, for automatic beading and rolling machines SDS3600-60 (60 mm Ø rollers) and SDS3600-60-125 (60 mm Ø rollers, useful width is max. 1250 mm)



Add to my cart
for a quotation request
Jeu de molettes V6 pour assemblage avec molette de rétreint pour SDS3600-60

Set of rolls V6 to match with necking rolls, for SDS3600-60

Set of rolls Type V6, reference SDS360060MOLV6R, Ø 6 mm bead, to match with necking rolls, for automatic beading and rolling machines SDS3600-60 (60 mm Ø rollers) and SDS3600-60-125 (60 mm Ø rollers, useful width is max. 1250 mm)



Add to my cart
for a quotation request
Jeu de molettes V8 pour assemblage avec molette de rétreint pour SDS3600-60

Set of rolls V8 to match with necking rolls, for SDS3600-60

Set of rolls Type V8, reference SDS360060MOLV8R, Ø 8 mm bead, to match with necking rolls, for automatic beading and rolling machines SDS3600-60 (60 mm Ø rollers) and SDS3600-60-125 (60 mm Ø rollers, useful width is max. 1250 mm)



Add to my cart
for a quotation request
Jeu de molettes de rétreint pour SDS3600-60

Set of necking rolls for SDS3600-60

Set of necking rolls Type R, reference SDS360060MOLR, for automatic beading and rolling machines SDS3600-60 (60 mm Ø rollers) and SDS3600-60-125 (60 mm Ø rollers, useful width is max. 1250 mm)



Add to my cart
for a quotation request
