Light electric cutting lines CLD
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge

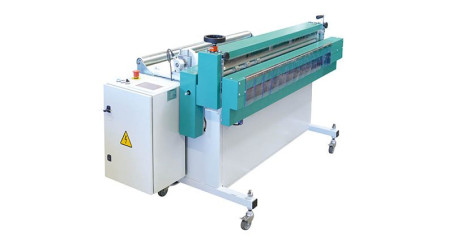

Cutting unit 1.25m x 0.7mm, numerical uncoiling, electric cutting, 3 sets of slitting blades
Ref. CLD-AE-CTE-REF
Price and lead time: please contact us
Electric cutting line, reference CLD-AE-CTE-REF, useful cutting width 1.25m, 0.7mm steel capacity, uncoiling and electric cut, slitting function with 3 sets of adjustable blades, equipped with a numerical control with touch screen 7"
More info Optional complementary equipmentCutting unit 1.25m x 0.7mm, numerical uncoiling, electric cutting, 3 sets of slitting blades
> Product plus:
- Automatic cutting cycles for a work without an operator
- Uncoiling speed 12m / mn
- Speed variator for a smooth work
- Uncoiling and electric cut

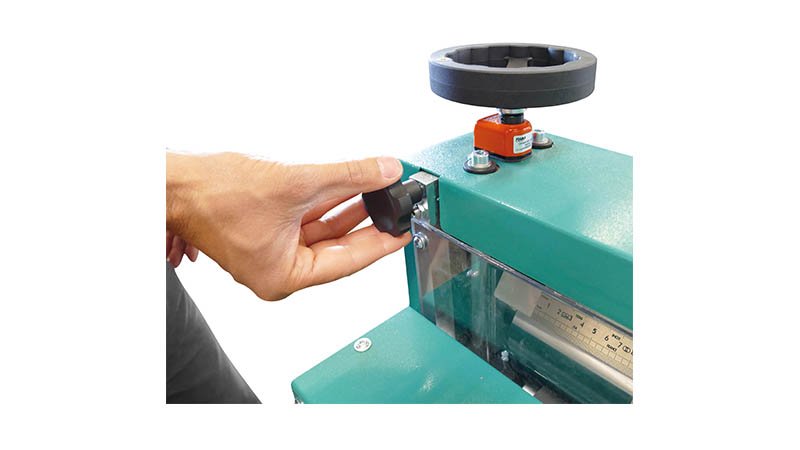

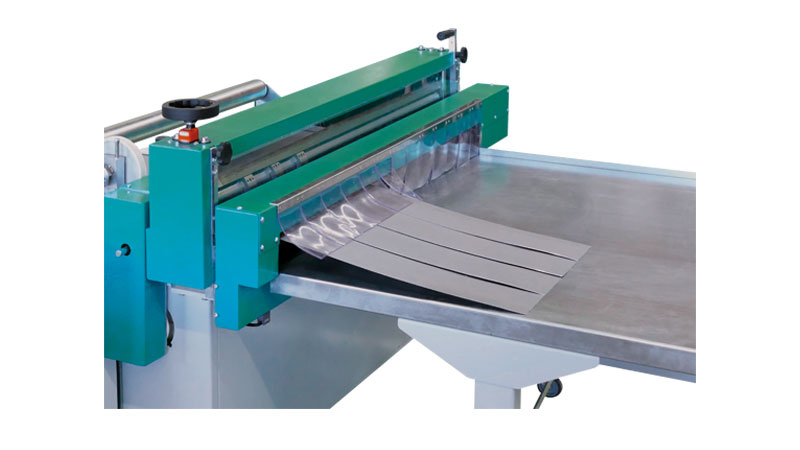

- With or without slitting, manual raising of the upper blades
- Easily movable in workshop
- Does not mark the metal sheet

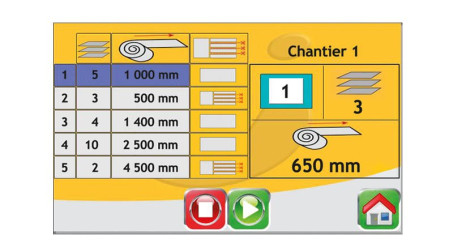

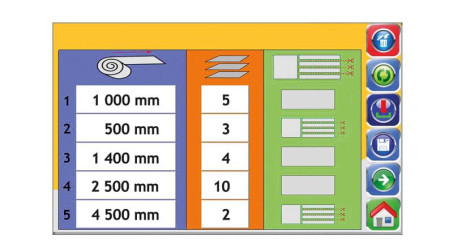

> Numerical control:
- Color touch screen 7’’
- Programming of several quantities and several lengths
- In Auto mode, selection of slitting or not per line of program
- Automatic cutting cycle
- Manual cycle to work on an ad hoc basis
- Manual or automatic speed adjustment
- Accuracy of cut + / - 2mm over 2m
> Standard equipment:

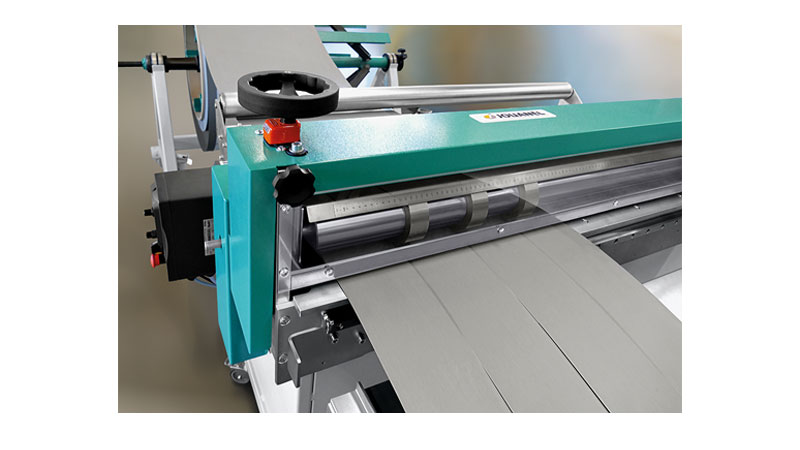

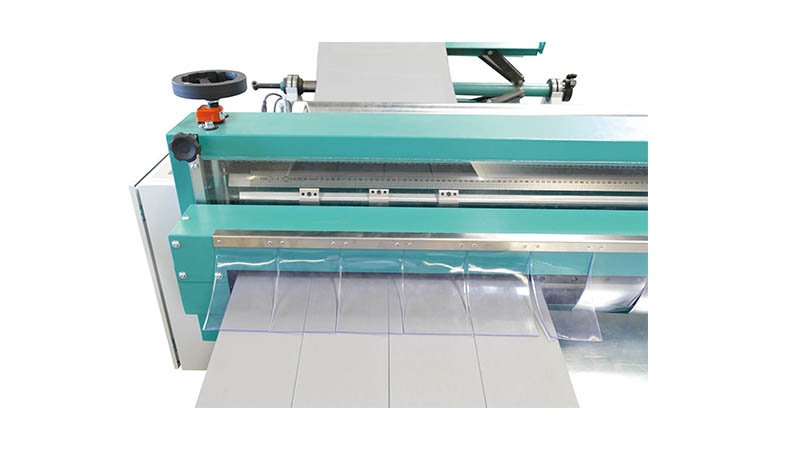

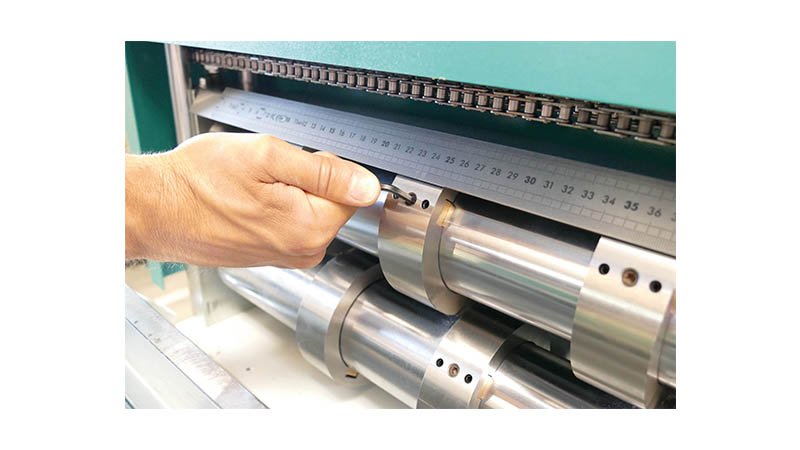

- 3 sets of adjustable blades for slitting
- Drive by rubber rollers
- Ajustable input guides from 500 to 1250mm, on slides and locking handles
- Mount adapts to coils with a minimum width of 250 mm
- Guiding of the metal sheet on ball bearings
- Free roller at the entrance to guide the metal sheet in height
- Entry table with nylon protection to avoid marking under the metal sheet
- Sheet clamping device for cut, by rubber roller with reverse-lock device of the coil
- Electric cut by roller shear
- Length mesuring wheel
- 4 caster wheels with brakes
Product features
|
Maximum cutting capacity |
|
|
Soft Steel capacity (mm) |
0,7 |
|
Capacity Zinc, Copper, 1050-H44 Aluminum (mm) |
0,8 |
|
Capacity Stainless Steel (mm) |
0,5 |
|
Uncoiling |
|
|
Minimum width of the coil (mm) |
250 |
|
Maximum width of the coil (mm) |
1 250 |
| Slitting | |
| Sets of blades | 3 |
| Power supply (V)* | 220V single |
| Power (kW) | 0,18 |
|
Dimensions |
|
|
Operating dimensions (mm) |
1 950 x 930 x 1 120 |
|
Sheet overhead clearance (mm) |
825 (adjustable +/- 15mm) |
|
Transport dimensions (mm) |
2 000 x 1 100 x 1 250 |
|
Net weight (kg) |
400 |
|
Gross weight (kg) |
459 |
| * Voltage choice to signal at the order |
