Asymmetrical electric roll-bending machines ROL

  • Rouleuse électrique 1,25 mètre - acier 1,2 mm, vitesse variable, rouleau Ø 60

    Click to enlarge

  • Rouleuse électrique 1,25 mètre - acier 1,2 mm, vitesse variable, rouleau Ø 60. Details

    Click to enlarge

  • Rouleuse électrique 1,25 mètre - acier 1,2 mm, vitesse variable, rouleau Ø 60. Detail2

    Click to enlarge

  • Rouleuse électrique 1,25 mètre - acier 1,2 mm, vitesse variable, rouleau Ø 60. Detail1

    Click to enlarge

  • Rouleuse électrique 1,25 mètre - acier 1,2 mm, vitesse variable, rouleau Ø 60. - detail3

    Click to enlarge

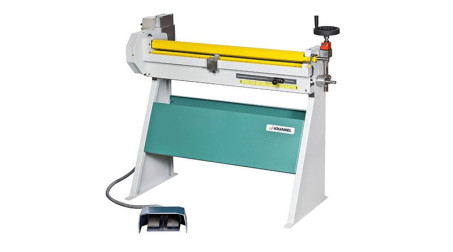

Electric roll-bending machine, 1270 mm x 1.2 mm, upper roller Ø 60 mm

Ref. ROL1270-12EVV

Price and lead time: please contact us

Electric roll-bending machine for workshop, reference ROL1270-12EVV, useful rolling width 1,25m, 1.2mm steel capacity, variable speed, 60mm Ø upper roller, control pedal, on base

More info

Electric roll-bending machine, 1270 mm x 1.2 mm, upper roller Ø 60 mm


> Product plus:

  • Variable speed by switch

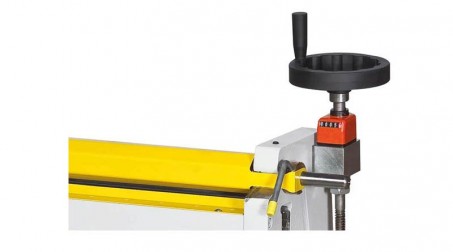

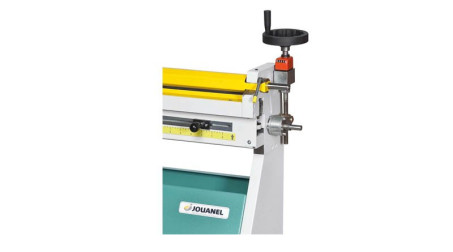

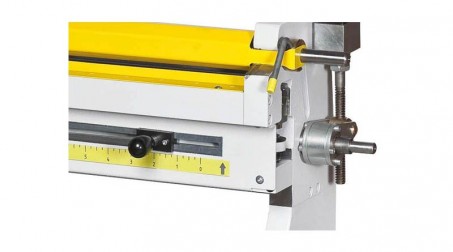

  • Quick positioning of the bending roller with a position marker on counter for repetitive production
  • Quick positioning with index of the presser roller depending on thickness
  • Conical-shaped central rollers to compensate distortions
  • Protecting cover of upper and lower rollers for safe work


> Standard equipment:

  • Machined rollers made of high-carbon steel (24 HRC)
  • Back roller equipped with a counter
  • Lower roller equipped with a position marker

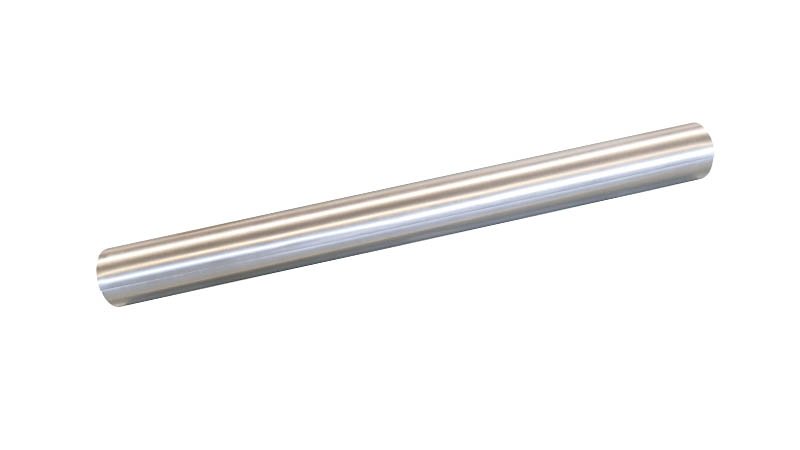

  • For production of seaming pipes, upper roller equipped with a tangential slot

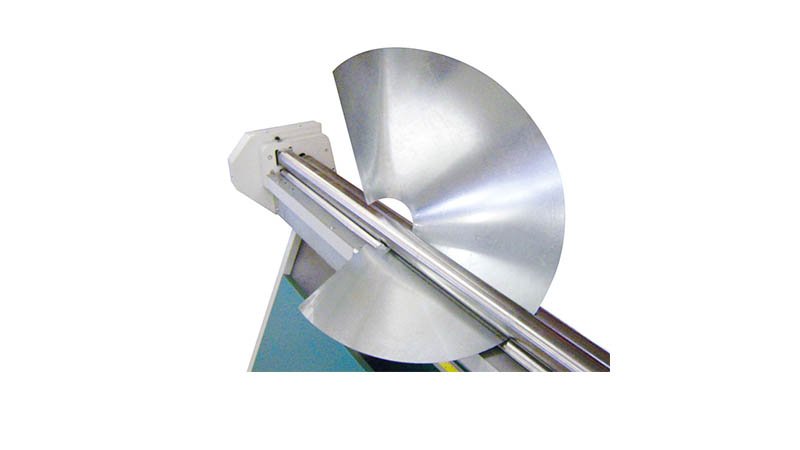

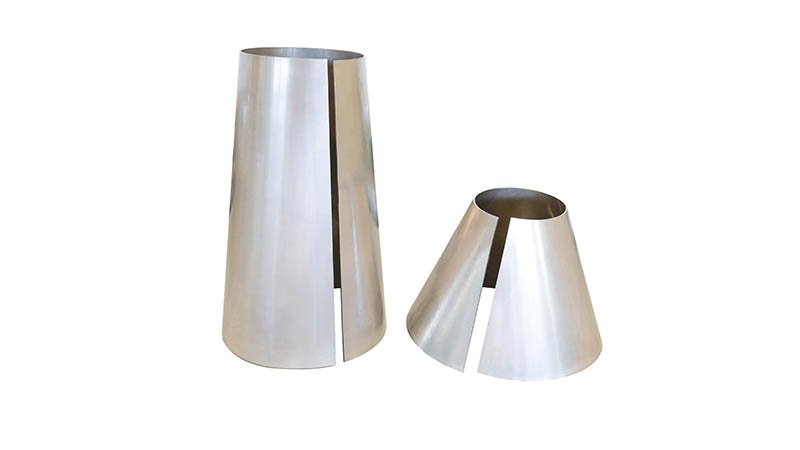

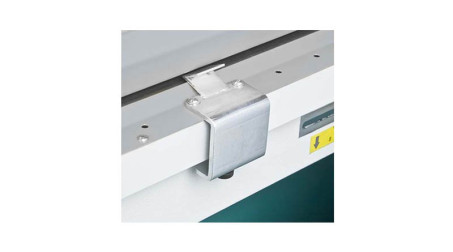

  • For rolling of cones, machine equipped with a movable gauge
  • Motor equipped with a variator to set the rolling speed easily depending on the works to be made
  • Driving motor equipped with a brake for  accurate positioning of the metal sheet (cancels the inertia effect)
  • Protective enclosures
  • Control pedal

Product features

Useful length (mm)

1 270

Capacity Stainless Steel / Aluminium (mm)

0,7 / 1,5

Capacity Steel S235JR (mm)

1,2

Ø of rollers (mm)

Upper and lower conical roller 60 mm

Hardness of rollers (kg/mm²)

90-100

Minimum rolling diameter (mm)

80 to 120 mm acc. to thickness
and type of metal sheet

Working height (mm)

920

Power (kW)

0,75

Rotation speed of rollers (m/min)

Variable
9

Power supply (V)*

220V, 1-ph+Earth

Control

Double pedal forward / backward

Dimensions (mm)

1 720 x 750 x 1 175

Gross weight (kg)

291

* Voltage choice to signal at the order
