Electric shear 3m x 3mm, electric back gauge 750mm, CNC control

> Product plus:

• Cutting capacities adapted to the industrial sheet metal industry
• Double motorization for a good distribution of the efforts
• Very good rigidity of the machine for high quality cuts
• Powerful and permanent lighting of the cutting line by Leds
• Adjustment of the blade gap acc. to the thicknesses and materials
• Fast moving electric backgauge
• Numerical control with numerous functions

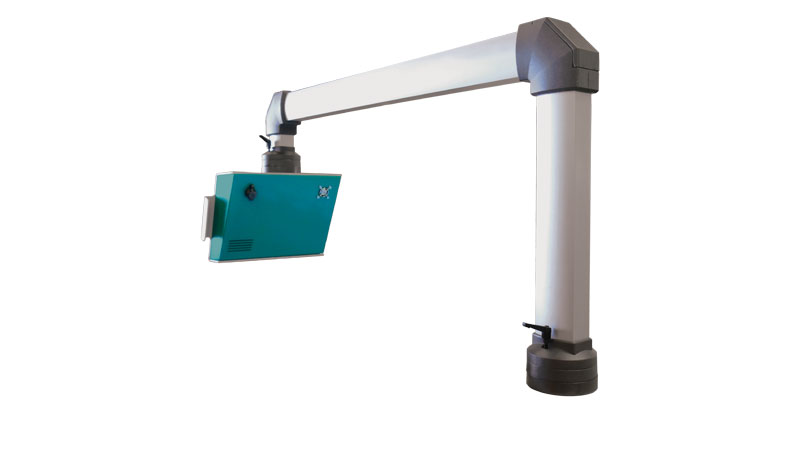

• Multi-position control console on swivel arm for an optimal positioning of the operator
• Numerous equipments which enhances productivity
  and comfort of use

> Numerical control (included):

• Numerical control with 7’’ color touchscreen
• Intuitive and user-friendly programs
• Rapid creation of programs, sorted by customer or building sites
• Quick programming several lengths and quantities
• Automatic menu for serial production or manual for single cuts
• Cuts counter for daily or cumulative total of cuts completed with reset possibility
• Maintenance menu with indication of preventative maintenance
• Remote maintenance and updates via Ethernet connection (RJ45)

> Standard equipment:

• Front table, 435mm wide, working height 875mm
• Flexible front sheet supporting plates in stainless steel, 400mm long
• Front support arms, 1000mm with front roller to easily lay the sheet on the table
• Squaring arm in stainless steel, length 1000mm, placed on the right side of the machine, with front roller
• Automatic sheet clamping system with rubber protection
  (protects and holds the sheet)
• Blade beam on self-lubricating rails
• Once-piece blades, 4 times reversible before sharpening
• Manual adjustment of the blade gap with position indicator acc. to the thickness to cut
• Powerful LED cut line indicator built into the sheet holding system (permanent lighting, better visibility)
• Control with foot-switch or with button from the console
• Control console on swivel arm to grant maximum user comfort
  to the operator
• Safely light curtains provide safe access to the back of the machine
• Electric back gauge with fast moving, controlled by the CNC, range from 5 to 750mm, conical adjustment with counter to slant the back gauge for angle cuts (accurate to ± 0.1mm)
• 2 slinging rings
• Guaranteed French origin Label - CE-conformity
