Electric guillotine shears CGI-A-BCAV

  • Cisaille électrique lg 2050 x 2 mm avec butée arrière manuelle à courroie

    Click to enlarge

  • Click to enlarge

  • Click to enlarge

  • Click to enlarge

  • Click to enlarge

  • Click to enlarge

  • Click to enlarge

  • Click to enlarge

Electric shears 4m x 1,2 mm with manual back gauge 5-750mm, control from front

Ref. CGI4080A-BCAV

Price and lead time: please contact us

Workshop electric guillotine shear, reference CGI4080A-BCAV, useful cutting length 4m, 1,2mm steel capacity, control by pedal, manual belt-type back gauge from 5 to 750mm, square gauges, retractable front table

More info Optional complementary equipment

Electric shears 4m x 1,2 mm with manual back gauge 5-750mm, control from front

> Product plus:

  • Reinforced rigidity, more cutting power
  • Optimised for series production
  • High operating comfort
  • Possibility to cut to 5mm
  • Permanent and powerful lighting of the cutting line by LED,
    integrated in the sheet clamping device
  • Very high visibility for scribe cuts
  • Reliability and safety

> Manual belt-type back gauge:

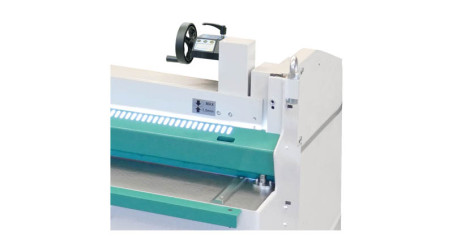

  • Control and display from de front of the machine
  • Manual back gauge with fast movements
  • Back gauge stroke from 5 to 750mm
  • Control of the back gauge’s position with digital counter
  • Wide counter face for an easy reading
  • Conicity device for cross-cuts

> Standard equipment:

  • 300mm wide and 800mm high front table, grooved every 10mm
    to cut easily without bearing on gauge
  • Retractable front table  + 480 mm for large formats
  • Retractable back metal sheet support 120mm
    (plate option excluded)
  • Left-hand 300mm and right-hand 500mm graduated square gauge
  • Manual belt-type back gauge, from 5 to 750mm with control and display from de front of the machine, digital control and conicity device
  • Automatic sheet clamping system
  • Control by pedal
  • One-piece blades are reversible once
  • Cut counter with reset

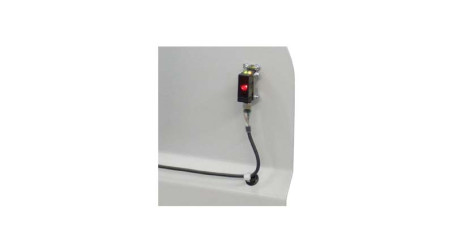

  • Photocells providing safe access to the back of the machine

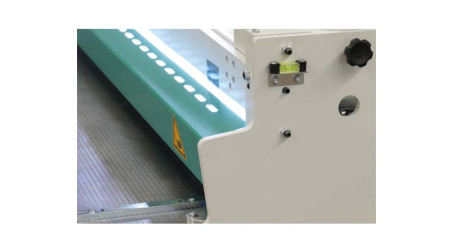

  • Powerful lighting of the cutting line with LED strip integrated in the sheet holding system (permanent lighting, better visibility)
  • Slinging rings

Product features

Useful cutting length (mm) 4 080
Max. capacity Zinc (mm) 1.5
Max. capacity Aluminum 1050-H44 (mm) 1.5
Max. capacity Steel S235JR (mm) 1.2
Max. capacity Stainless steel 304L (mm)

0.8

Note: for cuts from 5 to 25mm, capacity reduction of -50%
Table height (mm) 800
Cutting rate (cuts / min) 25
Manual back gauge stroke (mm)

 from 5 to 750

Power (kW) 2.2

Power supply *(V)

400V Three-ph + earth

Dimensions (mm)

4 770 x 1 730 x 1 460

Weight (kg) 2 250
* Choice of the voltage to be specified with the order / possible 220V power supply as an option



Optional complementary equipment

Peigne soutien de tôles arrière pour cisaille CGI4080A

Back support for sheets with automatic release for CGI4080A shears

Automatic back metal sheet holding plate for CGI4080A shear, reference CGI4080A-PEIGNE.



Add to my cart
for a quotation request
Bac de récupération avec renvoi des tôles vers l'avant 4M pour CGI4080 - Detail2

Front collecting tray for sheets 4m for CGI4080

Metal sheet collecting tray, reference CGI4080-BL, collection of the metal sheet formats up to 750mm wide at the front of the machine, 8 small wheels with brakes



Add to my cart
for a quotation request

Right side square gauge 1000mm instead of 500 for CGI

Right side square gauge 1000mm ref.CGI-EQUER-1000. Can be used as an alternative to the standard side square gauge



Add to my cart
for a quotation request

Left side square gauge 1000mm instead of 500 for CGI

Left side square gauge 1000mm ref.CGI-EQUER-1000G. Can be used as an alternative to the standard side square gauge



Add to my cart
for a quotation request

220V single-phase power supply for CGI-BCAV and CGI-BCREM

220V single-phase power supply, ref.CGI-220-BCAV-BCREM, for electric guillotine shears CGI-A-BCAV and CGI-A-BCREM, instead of the standard 400V Three-phases + Earth power supply (220V single-phase power supply according to electrical installation recommendations)



Add to my cart
for a quotation request
