Long-length hydraulic folding machines PGL

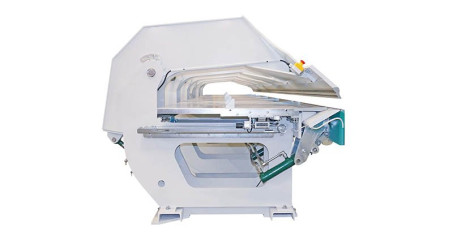

Extra long folding machine 12,05 ml - steel 3 mm
Ref. PGL12000-3
Price and lead time: please consult us
Hydraulic folding machine, reference PGL12000-3, useful folding length 12m, 3.0mm steel capacity, automatic adjustment of the clamp position acc. to the thickness to fold, useful folding depth 1250mm. Must be equipped with extra numerical control including electric back gauge (2 models available: SIEM-PRO or PGL-GRAPH)
More info Optional complementary equipmentExtra long folding machine 12,05 ml - steel 3 mm
> Product plus:
- Designed for the long-length shaping workshops
- Strong construction, widely sized to provide high rigidity to get a good quality of long-length fold
- Large gooseneck to work large-sized metal sheets
- Automatic gooseneck adjustment
- Automatic adjustment of the clamp position acc. to thickness to fold
- Important reliefs thanks to the removable platform

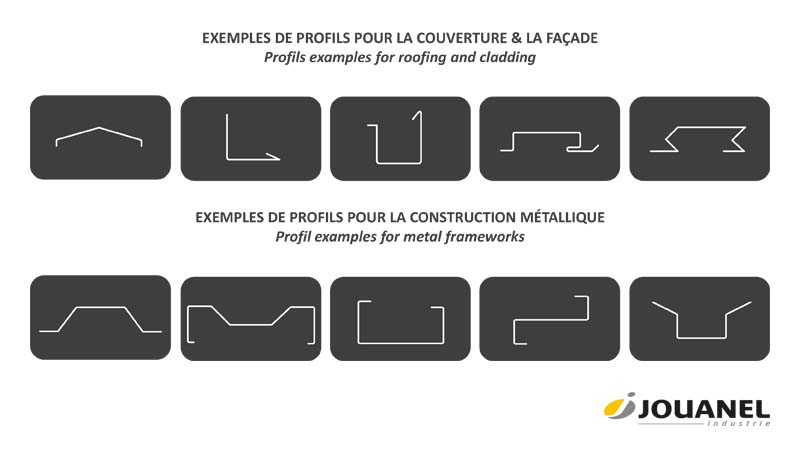

- Possible conical folding making easy the joining of profiles
> Numerical control:
2 numerical controls with touch screen: optional
NB: the PGL folding machine does not work without numerical control
see "optional extra equipment" at the bottom of the page
> Standard equipment:
- Welded-metal construction
- Useful folding depth: 1250mm (gooseneck)
- 30mm folding beam
- Maximum folding radius 135°
- Clamp opening 200mm
- Clamping beam tool built in high-carbon steel of 15mm
- Removable platform
- Double operator control
- CE conformity
Product features
| Useful folding length (mm) |
12 050 |
|
Folding beam thickness (Added tool / Folding beam) |
15 / 30 |
|
Capacity steel S235JR (mm) |
3 |
|
Clamping beam tool angle |
40° |
| Clamp opening (mm) |
200 |
|
Power supply (V)* |
400 V three-ph + neutral + earth |
|
Power (kW) |
15 |
|
Dimensions (L x l x H) (mm) |
12 365 x 1 785 x 1 500 |
| * Choice of the voltage to be specified with the order | |
|
Minimum fold width: 15 times the thickness |
|
Optional complementary equipment

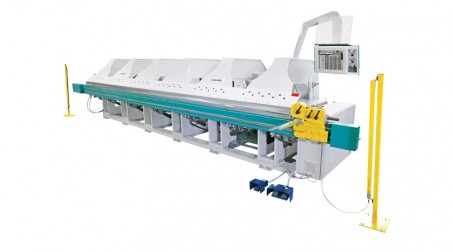

SIEMPRO numerical control, 3 axis, with electric back gauge 1250 mm, for PGL12000
for a quotation request
Angle checking and automatic correction - for PTL-PTS-PGL-PTN equipped with SIEMPRO CNC
for a quotation request
Dynamic graphics CNC controller and electric back gauge, for PGL12000 folding machines
for a quotation request
