Long-length hydraulic folding machines PGL

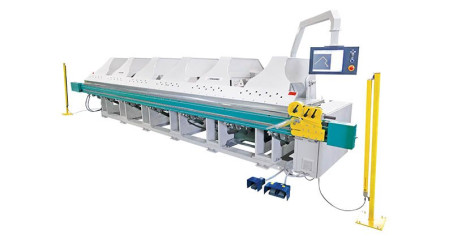

  • Plieuse grande longueur de 8,05ml acier 3 mm-réglage auto col de cygne inclus

    Click to enlarge

  • Plieuse grande longueur de 8,05ml acier 3 mm-réglage auto col de cygne inclus - Zoom CN

    Click to enlarge

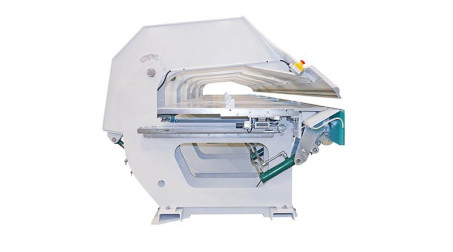

  • Plieuse grande longueur de 8,05ml acier 3 mm-réglage auto col de cygne inclus - Detail cote

    Click to enlarge

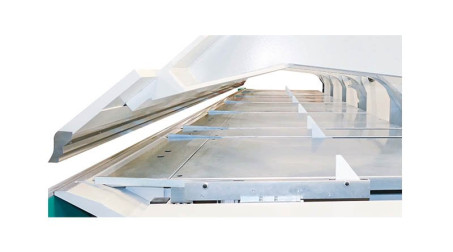

  • Plieuse grande longueur de 8,05ml acier 3 mm-réglage auto col de cygne inclus - Detail doubles doigts

    Click to enlarge

Extra long folding machine 8,05 m - steel 3 mm

Ref. PGL8000-3

Price and lead time: please consult us

Hydraulic folding machine, reference PGL8000-3, useful folding length 8m, 3.0mm steel capacity, automatic adjustment of the clamp position acc. to the thickness to fold, useful folding depth 1250mm. Must be equipped with extra numerical control including electric back gauge (2 models available: SIEM-PRO or PGL-GRAPH)

More info Optional complementary equipment

Extra long folding machine 8,05 m - steel 3 mm


> Product plus:

  • Designed for the long-length shaping workshops
  • Strong construction, widely sized to provide high rigidity to get a good quality of long-length fold
  • Large gooseneck to work large-sized metal sheets
  • Automatic gooseneck adjustment
  • Automatic adjustment of the clamp position acc. to thickness to fold
  • Important reliefs thanks to the removable platform
  • Possible conical folding making easy the joining of profiles

> Numerical control:

2 numerical controls with touch screen: optional
NB: the PGL folding machine does not work without numerical control
see "optional extra equipment" at the bottom of the page


> Standard equipment:

  • Welded-metal construction
  • Useful folding depth: 1250mm (gooseneck)
  • 30mm folding beam
  • Maximum folding radius 135°
  • Clamp opening 200mm
  • Clamping beam tool built in high-carbon steel of 15mm
  • Removable platform
  • Double operator control
  • CE conformity

Product features

Useful folding length (mm)

8 050

Folding beam thickness (Added tool / Folding beam)

15 / 30

Capacity steel S235JR (mm)

3

Clamping beam tool angle

40°

Clamp opening (mm)

200

Power supply (V)*

400 V three-ph + neutral + earth

Power (kW)

11

Dimensions (L x l x H) (mm)

8 365 x 1 785 x 1 500
 * Choice of the voltage to be specified with the order

Minimum fold width: 15 times the thickness



Optional complementary equipment

Commande numérique - VueCN1

SIEMPRO numerical control, 3 axis, with electric back gauge 1250 mm, for PGL8000

3-axis numerical control, reference SIEM-PRO-8, with 10" color touch screen and electric back gauge, from 25 to 1250mm, for workshop hydraulic folding machine PGL length 8m



Add to my cart
for a quotation request

Angle checking and automatic correction - for PTL-PTS-PGL-PTN equipped with SIEMPRO CNC

Automatic angle controller, reference COR-ANG-CN, maximum using capacity 1 mm (option to be ordered with the numerical control)



Add to my cart
for a quotation request
Commande numérique graphique dynamique - VueCN1

Dynamic graphics CNC controller and electric back gauge, for PGL8000 folding machines

Dynamic graphic numerical control, reference PGL-GRAPH-8, with large 19" color touch screen and electric back gauge, from 25 to 1250mm, for workshop hydraulic folding machine PGL length 8m



Add to my cart
for a quotation request

Angle checking and automatic correction

Automatic angle controller, reference COR-ANG-PGL for hydraulic folding machines PGL from 4 to 12m. Angle controller used with the numerical control only, reference PGL-GRAPH, maximum capacity 1mm (Option to be ordered with the numerical control)



Add to my cart
for a quotation request
Couteau à molettes hydraulique acier 3 mm

Electric roller shear- steel 3 mm

Hydraulic roller shear, reference PGL8-COUT3 for folding machine PGL8000-2 and PGL8000-3, 3.0mm steel capacity



Add to my cart
for a quotation request
Dispositif de butée conique pneumatique, cde av, 2 doigts supplémentaires inclus - Schema pliage pr conicite1

Conical pneumatic gauge, control on the front, 2 extra fingers included

Pneumatic conical gauge device, reference PGL-CON-PNEU, 2 extra gauge fingers included, for hydraulic folding machines of the PGL range. Pneumatic system controlled at the front of the machine to manage the conicity on the back gauge in order to make easy the joining of profiles



Add to my cart
for a quotation request
Table de travail de 4 M

Working table 4 ml

Working table on wheels reference PGL-TABLE4 for long-length PGL folding machines from 4 to 12 meters. Length 4m, width 1m, working height 0.93m



Add to my cart
for a quotation request
Table de travail de 6 M

Working table 6 ml

Working table on wheels reference PGL-TABLE6 for long-length PGL folding machines from 4 to 12 meters. Length 4m, width 1m, working height 0.93m



Add to my cart
for a quotation request
