Asymmetrical electric roll-bending machines RPL

  • Rouleuse entièrement électrique 1,55 ml - acier 2 mm

    Click to enlarge

  • Rouleuse entièrement électrique 1,55 ml - acier 2 mm

    Click to enlarge

  • Rouleuse entièrement électrique 1,55 ml - acier 2 mm

    Click to enlarge

  • Rouleuse entièrement électrique 1,55 ml - acier 2 mm

    Click to enlarge

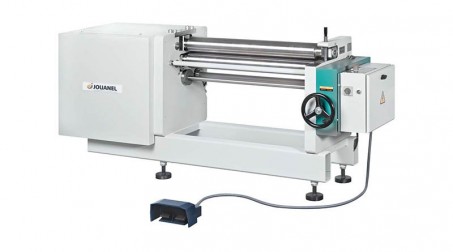

Fully electric roll-bending machine 1,55 m - steel 2 mm

Ref. RPL1550-20EE

Price and lead time: please contact us

Electric roll-bending/levelling machine for workshop, reference RPL1550-20EE, useful rolling width 1,50m, 2,0mm steel capacity, motorized rolling with control by pedal, electric adjustment of the electric pinch roller

More info Optional complementary equipment

Fully electric roll-bending machine 1,55 m - steel 2 mm


> Product plus:

  • Diameter of the rollers for production of small-diameter hoops

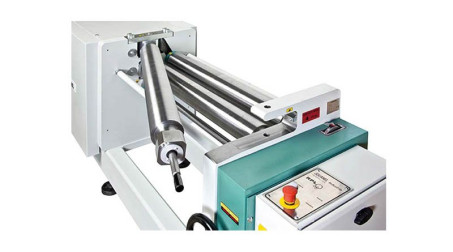

  • Easy side relief with roller holding in horizontal position
  • Possible conical rolling
  • Motors equipped with brake to avoid inertia of rollers in rotation


> Standard equipment:

  • Machined rollers made of high-carbon steel (95/105kg)
  • Driving roller bearings on double needle bearing cage for long-term accuracy

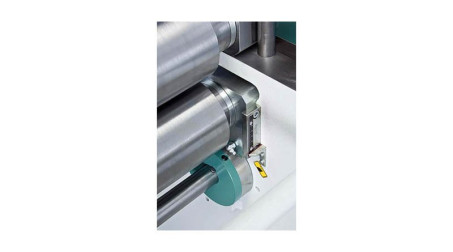

  • Adjustment of the presser roller, controlled by wheel with graduated position index

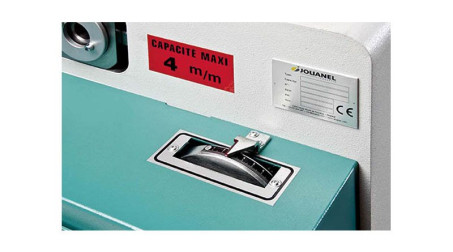

  • Manual adjustment of the pinch roller with graduated index
  • Motorized rolling with control by pedal

Product features

Useful length (mm)

1 550

Capacity Steel S235JR (mm)

2

Ø of rollers (mm)*

95

Control

Fully electric
Power supply (V)** 400V tri-phased
Power (kW) 1,1

Operating Dimensions (mm)

3 020 x 850 x 1 200

Weight (kg)

1 500

* Ø of the roller x 1,5 = Ø of the hoop, approximately
** Voltage choice to signal at the order
