Hydraulic Press brake - 6.1 m - 550 tons with tools
Ref. PPS6550
Price and lead time: please consult us

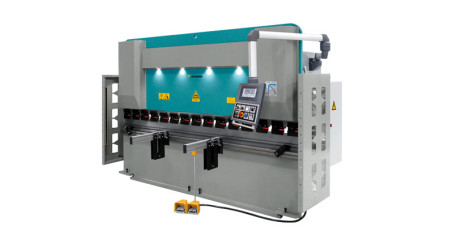

Hydraulic press brake reference PPS6550, useful folding length 6,10m, capacity 550 tons, with tools
More info Optional complementary equipmentHydraulic Press brake - 6.1 m - 550 tons with tools
> Product plus:
- Large-sized anti-torsion rod providing a correct parallel position
of the movable sliding block while lowering in pressure - Collapsible and adjustable rectifying working table
for high accuracy and durability - Hydraulic power unit with double safety and adjustable pressure

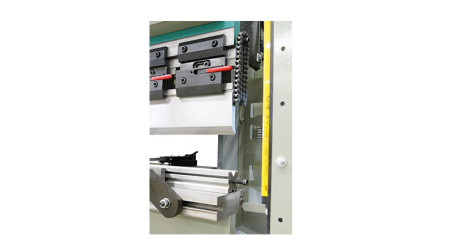

- Quick and easy die turning
- Immaterial safety barriers: before class 4
> Standard equipment:
- Front metal sheet support 500mm, adjustable for work comfort

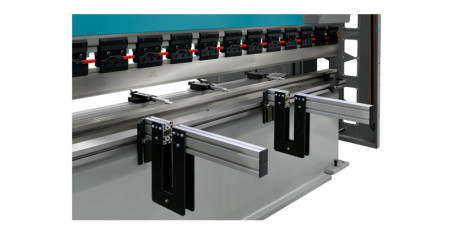

- The back gauge is fixed on a slide for small-width pieces, height-adjustable, depth-adjustable with micrometric screw ensuring high accuracy. The gauge fingers are retractable.

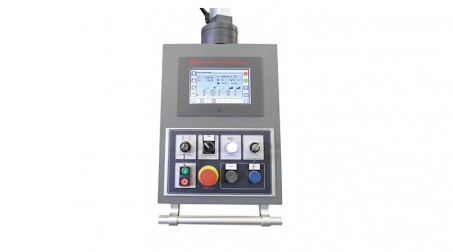

- Numerical control with touchscreen to control axis X and Y (several thousand programs, 80 folds each), possible to save and create programs, which can also be uploaded by usb stick

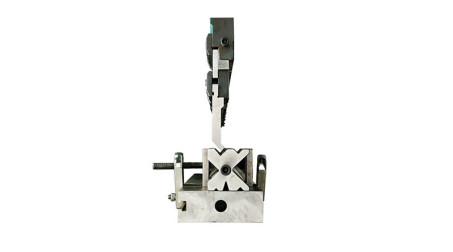

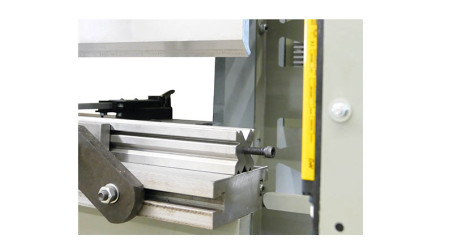

- Various dies depending on models (see detail)
- Punches 86° radius 0.6 mm, length 550 and/or 800mm acc. to model
- Control by pedal
- Power supply 400V three-phased + neutral
Product features
| For more information, consult our PRESS BRAKES catalogue or contact us |
