Light standing seam roll-forming machines PROBAC

  • Profileuse joint debout légère avec coupe manuelle intégrée

    Click to enlarge

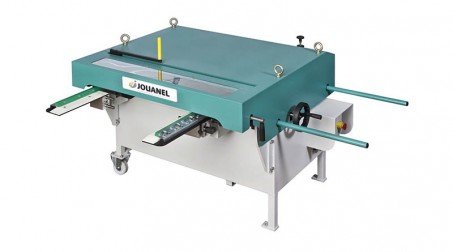

  • Profileuse joint debout légère PROBAC-LT-Cavec coupe manuelle intégrée

    Click to enlarge

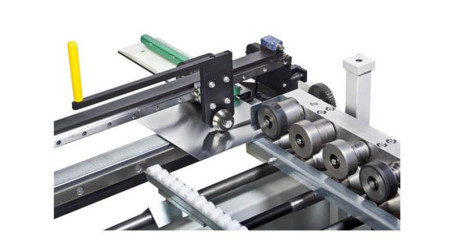

  • Profileuse joint debout légère avec coupe manuelle intégrée - detail coupe transv manuelle

    Click to enlarge

Light electric Roll former for Standing Seam 220 V Transversal Cutting integrated

Ref. PROBAC-LT-C

Price and lead time: please contact us

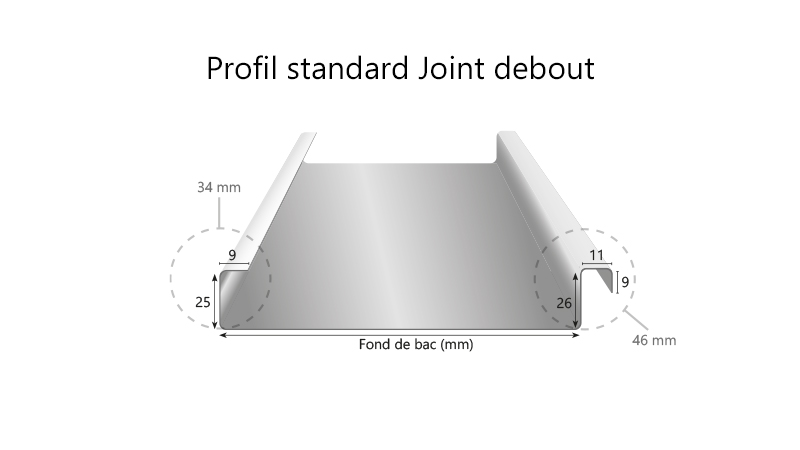

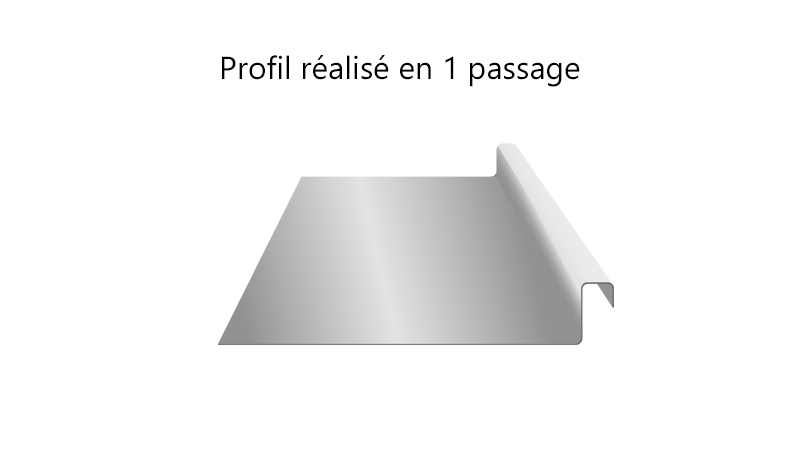

Light electric roll-forming machine for workshop or building site, reference PROBAC-LT-C with integrated manual cut for the production of standing seam profiles in parallel or conical trays. With its foldable entry guides and its handling arms, this machine is perfectly suitable for work on building site

More info Optional complementary equipment

Light electric Roll former for Standing Seam 220 V Transversal Cutting integrated


> Product plus:

  • Machine suitable for roll-forming on building site
  • Light, limited space requirement
  • Integrated manual transversal cut
  • Handling system with wheels and "shaft-type" arm
  • Foldable entry guides

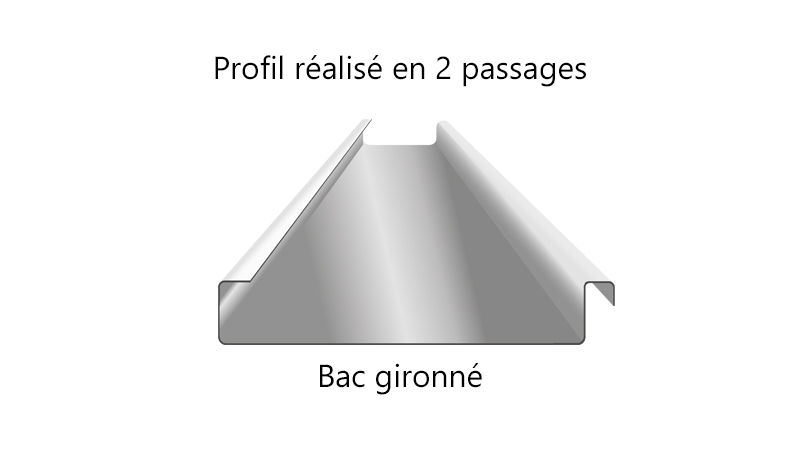

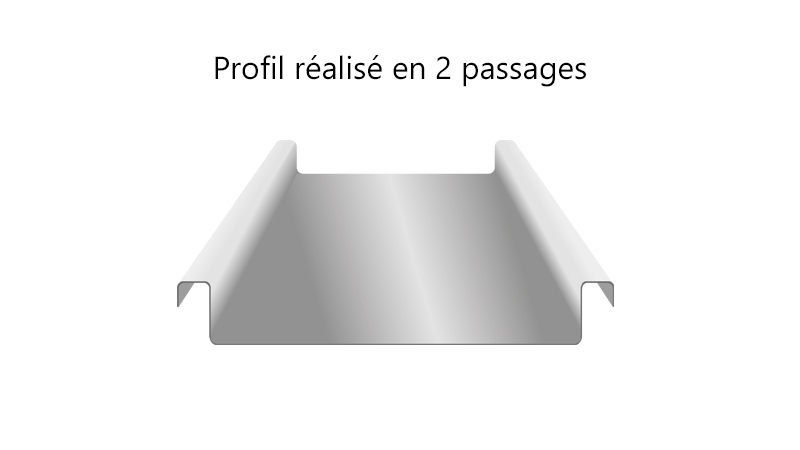

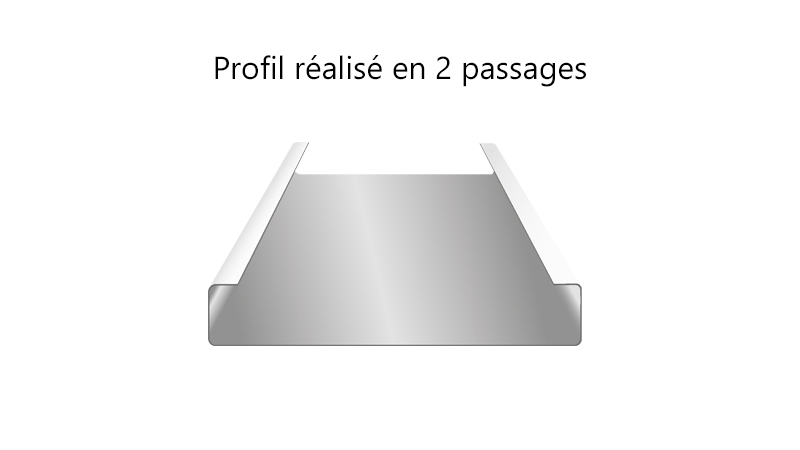

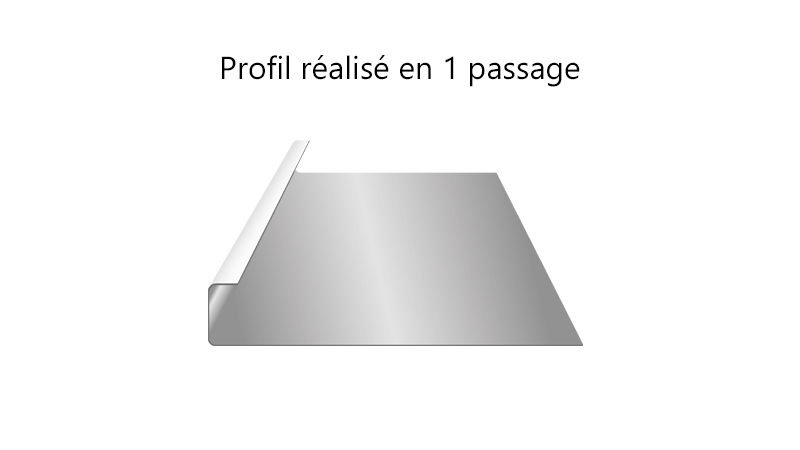

  • For all types of trays, parallel, starting and conical


> Standard equipment:

  • Minimum 250mm / maximum 800mm infeed width
  • Infeed width adjustment by wheel
  • 7 sets of rollers
  • Quick adjustment of the profiles return
  • Guiding of the sheet designed for the conical trays (1 side after another)
  • 2 caster wheels + 2 legs + handling arm
  • Straightener of trays at the exit
  • Slinging rings

Product features

Net weight (kg)

320

Dimensions (mm)

1 200 x 1350 x 1 050

Capacity Zinc / Copper / Aluminium (mm)

0,8
Power supply (V)* 220V - single 20 A - 50Hz
Power (kW) 1,1

Roll-forming speed (m/min)

9

Minimum length of trays (mm)

400

Slinging rings

4

* Voltage choice to signal at the order



Optional complementary equipment

Programmateur de longueur digital pour profileuse PROBAC-LT et LT-C

Digital length progammer for PROBAC-LT and PROBAC-LT-C

Digital length programmer, reference PROBAC-LGPRO, accuracy 0 / +5mm (option to be planned with the order of the machine)



Add to my cart
for a quotation request
Dévidoir largeur 1000 mm charge maxi 1200 kg

Decoiler width 1000 mm - max capacity 1,2 T

Decoiler on wheels, reference DVS1000, for 1000mm wide coils, maximum load 1200kg. Equipped with hub for manual mandrel expansion, from 285 to 540mm diameter. With brake and rewinding device



Add to my cart
for a quotation request
Diable dévidoir largeur 1000mm charge maxi 200 kg

Two-wheeled decoiler for handling and uncoiling up to 200 kg - width 1000mm

Two-wheeled decoiler, reference DVD1000, for 1000mm wide coils, maximum load 200kg. For handling and uncoiling of coils



Add to my cart
for a quotation request
Table à rouleaux extensible

Extendable roller table

Extensible roller table, reference TRX. Suitable for roll-forming and bending of standing seam trays and cleats, it provides a flatness at the machine exit. For working with long length, possibility to attach them to each other



Add to my cart
for a quotation request
Dévidoir manuportable largeur 500mm charge maxi 500 kg

Portable decoiler, for coils 500 to 1250-mm wide, maximum load 500 kg

Portable decoiler, reference DVM500, for 500 to 1250mm wide coils, maximum load 500kg. Light and multi-purpose, easy to transport and specially fitted for works on building site



Add to my cart
for a quotation request
