Building site manual folding machines PCL

  • Plieuse manuelle PCL1020A - Machine sans Options

    Click to enlarge

  • Plieuse manuelle PCL1020A - Machine2

    Click to enlarge

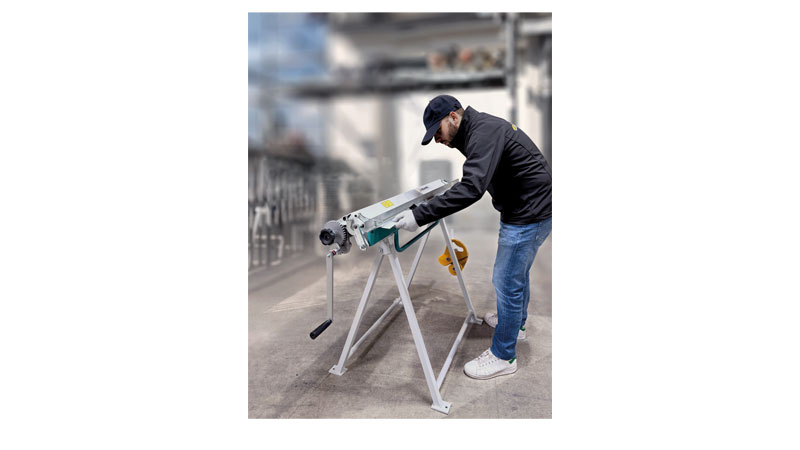

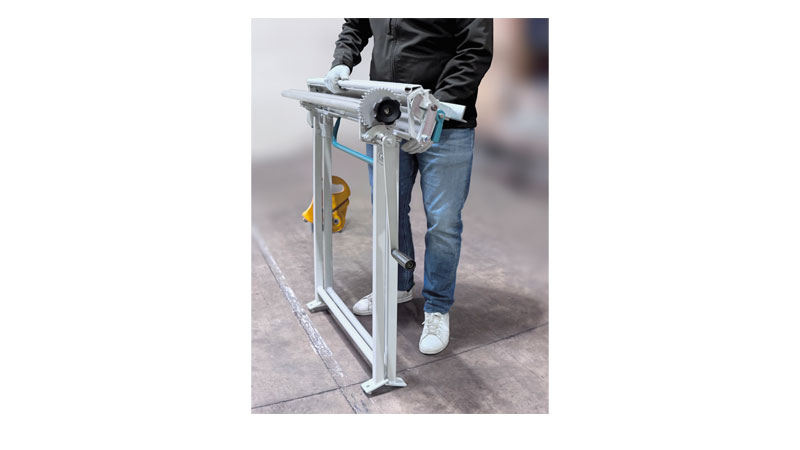

  • Plieuse manuelle PCL1020A

    Click to enlarge

  • Plieuse manuelle PCL1020A - Machine4

    Click to enlarge

  • Plieuse manuelle PCL1020A - Machine5

    Click to enlarge

  • Plieuse manuelle PCL1020A - Machine3

    Click to enlarge

  • Dégagements latéraux EN

    Click to enlarge

Manual building site folding machine 1,02 m - zinc 0,8 mm

Ref. PCL1020A

In stock

Light manual folding machine for building site, reference PCL1020A, useful folding length 1m, 0.8mm zinc capacity, with foldable feet, 15mm narrow folding beam and clamp locking by eccentric (without options)

More info Optional complementary equipment

Manual building site folding machine 1,02 m - zinc 0,8 mm


> Product plus:

  • Cuts, folds and beads on building site
  • Best weight / capacity ratio in its category (39kg)
  • Limited space requirement in vehicles
  • Foldable without tool
  • Locking of the folding beam for easy handling


> Standard equipment:

  • 15mm narrow folding beam
  • Maximum folding angle of 143°
  • Foldable and removable feet
  • Locking of the clamp by eccentric

Product features

Useful folding length (mm) 1 020
Capacity Zinc (mm) 0,8
Capacity steel S235JR (mm) 0,6
Clamp opening (mm) 60
Cutting device option yes
Beading accessory option yes
Dimensions (mm) - legs excluded 1 200 x 300 x 150
Net weight (kg) - legs included 39

Minimum fold width = 15 times the thickness

Optional complementary equipment

Rail de guidage RCL1020B pour couteau à molettes CCM

Guide rail for roller shear

Guiding rail, reference RCL1020B for building site manual folding machine PCL1020A. Hinged device at the front of the folding machine intended to use the CCM roller shear for the scribe cuts of material before folding



Add to my cart
for a quotation request
Couteau à molettes CCM

CCM roller shear

Roller shear, reference CCM, 0.8mm zinc capacity, for material cuts. Roller shear used on a guiding rail only



Add to my cart
for a quotation request
Accessoire à boudiner avec baguette Ø 13 mm et manivelle pour PCL1020A

Beading stick, Ø 13mm, with crank, for PCL1020A folding machine

Beading accesory with 13mm Ø stick, reference BAL1020MAN, 0.65mm zinc capacity. Used with the building site manual folding machine PCL1020A only



Add to my cart
for a quotation request
Accessoire à boudiner démultiplié ABH

Beading accessory with a 14-mm Ø stick, length 1m

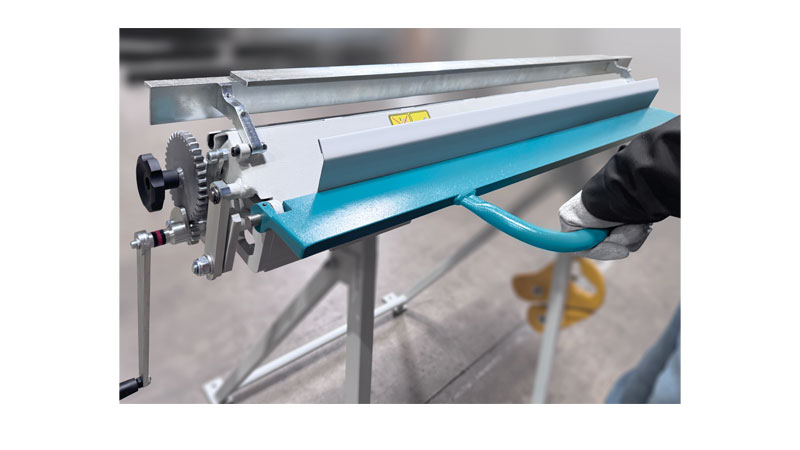

Geared-down beading accessory with 14mm Ø stick, reference ABH14-1020, 0.8mm zinc capacity. Gear reduction system to make very regular beads without effort. Used with the manual folding machines PCL1020A and PCX1020



Add to my cart
for a quotation request
Accessoire à boudiner démultiplié ABH

Beading accessory with a 18-mm Ø stick, length 1m

Geared-down beading accessory with 18mm Ø stick, reference ABH18-1020, 1.0mm zinc capacity. Gear reduction system to make very regular beads without effort. Used with the manual folding machines PCL1020A and PCX1020



Add to my cart
for a quotation request
Accessoire à boudiner démultiplié ABH

Beading accessory with a 16-mm Ø stick, length 1m

Geared-down beading accessory with 16mm Ø stick, reference ABH16-1020, 1.0mm zinc capacity. Gear reduction system to make very regular beads without effort. Used with the manual folding machines PCL1020A and PCX1020



Add to my cart
for a quotation request
Baguette de  Ø 14 mm pour ABH1020

Stick length 1m, Ø 14mm, for ABH1020

Extra 14mm Ø stick, reference BAH14-1020, for geared-down beading accesory ABH14-1020. Used for folding machines models PCL1020A, PCX1020 and beading machine BAG1020MD



Add to my cart
for a quotation request
Baguette de  Ø 16 mm pour ABH1020

Stick length 1m, Ø 16mm, for ABH1020

Extra stick, 16mm diameter, reference BAH16-1020, for geared-down beading accesory ABH16-1020. Used for folding machines models PCL1020A and PCX1020



Add to my cart
for a quotation request
Baguette de  Ø 18 mm pour ABH1020

Stick length 1m, Ø 18mm, for ABH1020

Extra stick, 18mm diameter, reference BAH18-1020, for geared-down beading accesory ABH18-1020. Used for folding machines models PCL1020A and PCX1020



Add to my cart
for a quotation request
Outil à fermer les pinces à 180° - face

Tool to close seams at 180° with adjustable heigth

Tool to close the seams, reference OFP-180, to make hems at 180° from a seam at 135°, 0.8mm steel capacity



Add to my cart
for a quotation request
