Workshop universal electric folding machines PTL

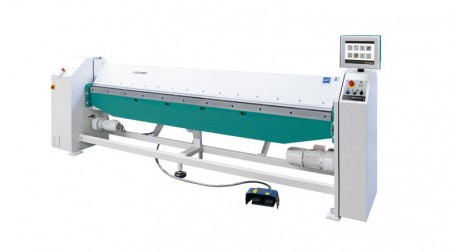

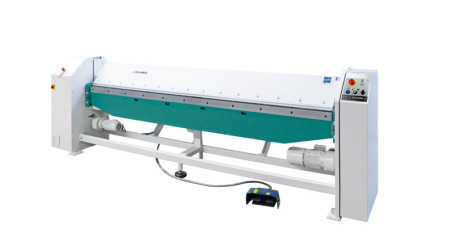

Electric folding machine, 3m x 1.2mm, automatic folding cycle, control by pedal
Ref. PTL3100-12
Price and lead time: please consult us
Universal electric folding machine for workshop, reference PTL3100-12, useful folding length 3m, 1.75mm 1050-H44 aluminum capacity - 1.2mm 400N/mm² steel capacity (capacities with 25mm folding beam tool), with automatic folding cycle, control by pedal, electromechanical angle gauge and 2 interchangeable 15mm and 25mm folding beam tools supplied
More info Optional complementary equipmentElectric folding machine, 3m x 1.2mm, automatic folding cycle, control by pedal
> Product plus:
- A powerful and multi-purpose electric machine
with a competitive price - Suitable for mass folding works
- Rapidity of the clamp and folding beam motion
- With or without numerical control depending on the budgets
- Automatic Cycle of Folding (CAP) enabling to perform successively the folding operations with a 25% gain in productivity
> Standard equipment:
- Supply of 2 interchangeable 15 and 25-mm folding beam tools
- Interchangeable clamping beam tool at 20° making easy the production of U profiles
- Electromecanic angle gauge from 0 to 145°
- Folding beam crowning device
- Adjustment of the folding radius
- Double operator control:
- 1 main double action pedal for 1 operator
- 1 additional simple pedal in mode 2 operators - Clamp locking control by foot pedal allowing to keep hands free
- Control of the folding beam, upwards and downwards by push-buttons
- Folding automatic cycle CAP
- Emergency stop device with cable
Product features
Useful folding length (mm) |
3 100 |
Capacity steel 400N/mm² (mm) with folding beam 25mm |
1.2 |
Capacity steel 400N/mm² (mm) with folding beam 15mm |
0.8 |
Capacity 1050-H44 aluminum (mm) with folding beam 25mm |
1.75 |
Capacity 1050-H44 aluminum (mm) with folding beam 15 mm |
1.2 |
Capacity galvanized steel (mm) with folding beam 25mm | 1.0 |
Capacity galvanized steel (mm) with folding beam 15mm | 0.65 |
Capacity stainless steel 304L (mm) with folding beam 25mm | 0.8 |
Capacity stainless steel 304L (mm) with folding beam 15mm | 0.5 |
Table height (mm) |
835 |
Clamping beam tool angle |
20° |
Clamp opening (mm) |
130 |
Folding speed (°/s) | 60 |
Clamping speed without safety light curtains (mm/s) | 10 |
Clamping speed with safety light curtains (mm/s) | 40 |
Power supply (V)* |
400 V three-ph + neutral + earth |
Total power (kW) |
1.5 |
Dimensions without back gauge (mm) |
3 970 x 620 x 1 190 |
Dimensions with electric back gauge |
3 970 x 1 673 x 1 550 |
Gross weight (kg) without electric back gauge |
1 800 |
* Electrical voltage to be specified upon order |
|
90° bending capacities / Minimum fold width: 15 times the thickness Clamp flattening = 1/3 of max. thickness capacity |
