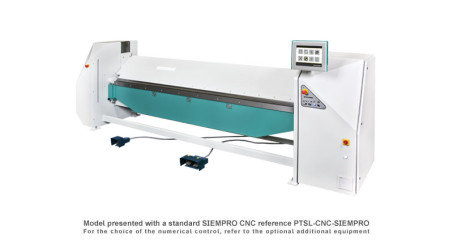

  • Universal folding machine PTS with standard SIEMPRO CNC

    Click to enlarge

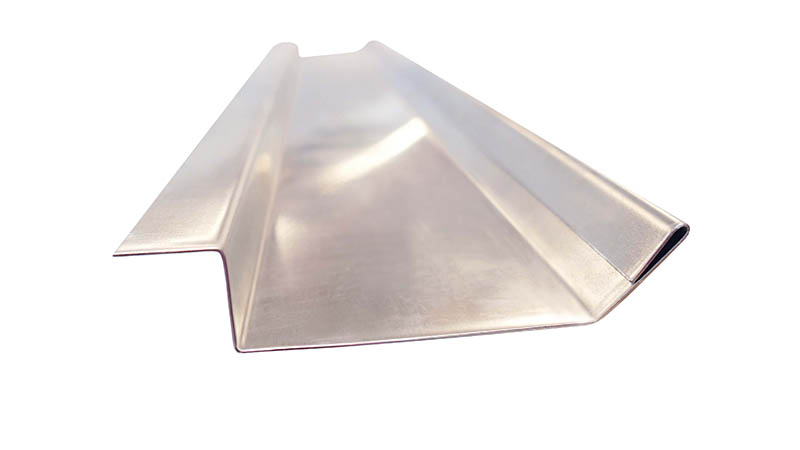

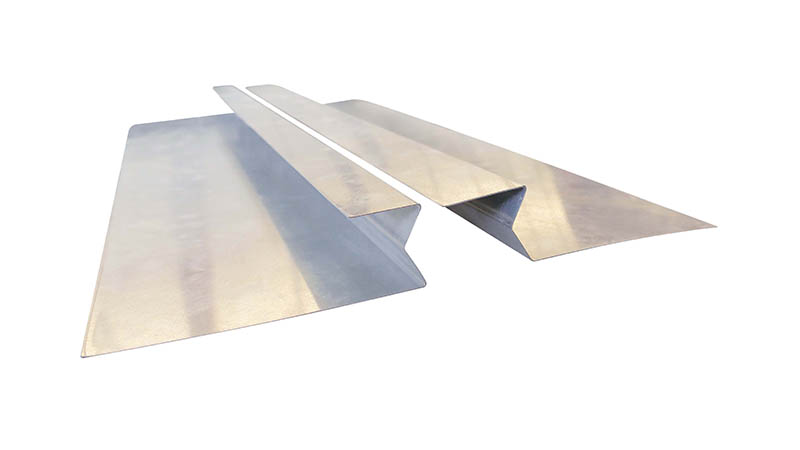

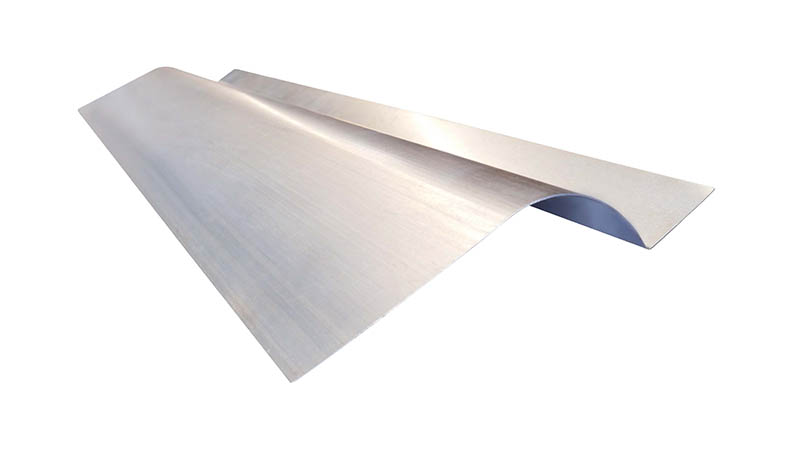

Universal electric folding machine 3m x 3mm

Ref. PTS3100-30

Price and lead time: please consult us

Universal electric folding machine for workshop, reference PTS3100-30, useful folding length 3m, 4.0mm 1050-H44 aluminum capacity - 3.0mm 400N/mm² steel capacity (capacities with 25mm folding beam tool), control by pedal and 2 interchangeable 15mm and 25mm folding beam tools supplied.

More info Optional complementary equipment

Universal electric folding machine 3m x 3mm


> Product plus:

  • Repeatability and accuracy
  • Double motorization of clamp and folding beam providing a very good power when folding and plating
  • Folding quality even for fine thicknesses
  • Two types of numerical controls available
    (see complementary equipment)
  • Model also available with a segmented clamping beam


> Standard equipment:

  • Supply of 2 interchangeable 15 and 25mm folding beam tools
  • Interchangeable clamping beam tool at 20° making easy the production of U profiles
  • Folding beam crowning device
  • Folding radius adjustment
  • Double operator control:
    - 1 main double action pedal for 1 operator
    - 1 additional simple pedal in mode 2 operators

Product features

Useful folding length (mm)

3 100

Capacity steel 400N/mm² (mm) with folding beam 25mm

3.0

Capacity steel 400N/mm² (mm) with folding beam 15mm

1.5

Capacity 1050-H44 aluminum (mm) with folding beam 25mm

4.0

Capacity 1050-H44 aluminum (mm) with folding beam 15mm

2.5

Capacity galvanized steel (mm) with folding beam 25mm 2.4
Capacity galvanized steel (mm) with folding beam 15mm 1.2
Capacity stainless steel 304L (mm) with folding beam 25mm 2.0
Capacity stainless steel 304L (mm) with folding beam 15mm 1.0

Table height (mm)

830

Clamping beam tool angle

20°

Clamp opening (mm)

130

Folding speed (°/s) 60
Clamping speed without safety light curtains (mm/s) 10
Clamping speed with safety light curtains (mm/s) 40

Power supply (V)*

400 V three-ph + neutral + earth

Total power (kW)

9

Dimensions without back gauge (mm)

4 600 x 1005 x 1 900

Dimensions with electric back gauge
and CNC options (mm)

4 600 x 2 100 x 1 900

Gross weight (kg) without electric back gauge

3 800

 * Electrical voltage to be specified upon order

90° bending capacities / Minimum fold width: 15 times the thickness

Clamp flattening = 1/3 of max. thickness capacity



Optional complementary equipment

CNC graph

GRAF CNC, 3 axes, dynamic graphic for electric folding machines

Dynamic graphic numerical control, reference PTSL-CNC-GRAF, 3 axes, with large 17" color touch screen and electric back gauge



Add to my cart
for a quotation request

Bending angle correction (Springback mode) for GRAF CNC for PTS and PTL, thickness up to 1mm

Automatic angle controller, reference PTSL-CORANG-GRAF, maximum using capacity 1.0mm (option to be ordered with the numerical control)



Add to my cart
for a quotation request
CN SIEMPRO

SIEMPRO CNC, 2 axes, for electric folding machines

2-axis numerical control, reference PTSL-CNC-SIEMPRO, with 15'' color touch screen



Add to my cart
for a quotation request

Bending angle correction (Springback mode) for SIEMPRO CNC for PTS and PTL

Automatic angle controller, reference PTSL-CORANG-SIEMPRO, maximum using capacity 1.0mm (option to be ordered with the numerical control)



Add to my cart
for a quotation request

Safety light curtains at the front, quicker clamping, for electric folding machine

Safety light curtains at the front, quicker clamping, for electric folding machine, reference PTSL-SPEED-Z. This active optoelectronic safety device detects the presence of an object or person in their detection field. The light curtain offers optimal safety for the operator and thus increases the clamping speed of the clamping beam for even more productivity.



Add to my cart
for a quotation request
Pupitre de commande sur potence

Control console on swivel arm for electric folding machine

Control console on swivel arm for electric folding machine, reference PTSL-CNC-POT. This articulated swivel arm supports the control consol and allows the operator to position the screen in front of him during the bending process. It can thus more easily follow the indications of the numerical control for the various folding operations (sheet positioning, inversions, reversals...)



Add to my cart
for a quotation request
Comm pneumatique doigts butée 1

Fully retractable back gauge fingers, pneumatic device, for 3m PTS/PTL

Fully retractable back gauge fingers, pneumatic device, référence PTSL-DP3. This option automatically lowers all back gauge fingers to the table level. This will allow a large sheet to be loaded from the rear without any obstacles.



Add to my cart
for a quotation request
BAE 1 rangée doigts butée

Electric back gauge, 10-750 mm, for 3m electric folding machine

Electrically-operated back gauge, reference PTSL-BAE3-750, from 10 to 750mm, gauge managed by the numerical control of the folding machine. The gauge includes the back table to support large-sized metal sheets and 8 gauge fingers. NB: option to be planned with the order of the folding machine.



Add to my cart
for a quotation request
BAE 1 rangée doigts butée

Electric back gauge, 10-1000 mm, for 3m electric folding machine

Electrically-operated back gauge, reference PTSL-BAE3-1000, from 10 to 1000mm, gauge managed by the numerical control of the folding machine. The gauge includes the back table to support large-sized metal sheets and 8 gauge fingers. NB: option to be planned with the order of the folding machine.



Add to my cart
for a quotation request
BAE 2 rangées doigts butée

Electric back gauge, 10-1500 mm, for 3m electric folding machine

Electrically-operated back gauge, reference PTSL-BAE3-1500, range from 10 to 1500mm, gauge managed by the numerical control of the folding machine. The gauge includes the back table to support large-sized metal sheets, 2 lines of 8 gauge fingers. NB: option to be planned with the order of the folding machine and require pressurized air supply.



Add to my cart
for a quotation request
option pliage conique pour BAE750 et 1000

Surcharge for pneumatic conical folding, manual adjustment, for back gauge 750-1000mm

Surcharge for pneumatic conical folding, reference PTS-BAE33-PC, manual adjustment, for 750 and 1000mm electrically-operated back gauge.



Add to my cart
for a quotation request
Supplément pliage conique, réglage pneumatique, pour butée AR 1500 de PTS33-42

Surcharge for pneumatic conical folding, manual adjustment, for back gauge 1500 mm

Surcharge for pneumatic conical folding, reference PTS-BAE33-1.5M-PC, manual adjustment, for 1500mm electrically-operated back gauge.



Add to my cart
for a quotation request

Control pedal on ground rail

Control pedal on ground rail, reference PTSL-PEDRAIL. The control pedal slides on a rail over the entire length of the machine. This system makes it easier to move the pedal and avoids leaving the power supply duct lying on the ground.



Add to my cart
for a quotation request
Supplément pince segmentée PTS33T

Surcharge for segmented clamping beam, left and right corner segments

Surcharge for segmented clamping beam, reference PTS33T (standard clamping beam tool also included). Working height of the segments: 120mm, left and right corner segments 30mm.



Add to my cart
for a quotation request
