Notching Tool for 45mm steel pan
New
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
-
Click to enlarge
Ref. ENC-BAC-ACI
In production

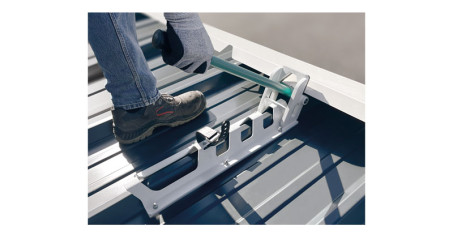

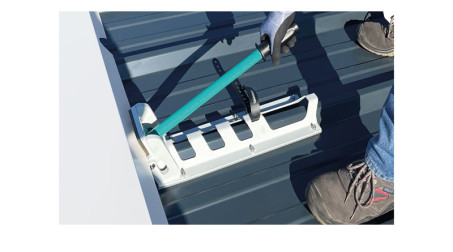

Manual lever-operated notching tool for 45mm trapezoidal steel pan, reference ENC-BAC-ACI, notch width 80-25mm, maximum capacity 0.75mm galvanized steel and pre-lacquered steel
More infoNotching Tool for 45mm steel pan

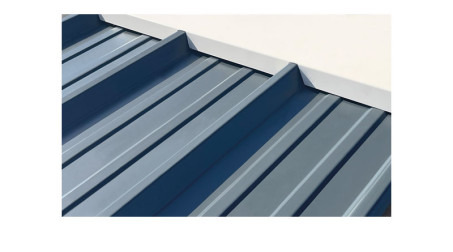

The 45mm trapezoidal steel pan notching tool is a robust and precise tool, specially developed for preparing profiled roofing and cladding sheets of the 45-pan type. It allows clean and regular notches that fit perfectly into the corrugations of the steel pan, making it easier to install ridge caps, ridge bands, verges, valleys, and sheet ends. Designed for workshop or on-site use, this notching tool ensures speed, precision, and safety, with no burrs or deformation of the sheet.
Application areas:
• Cuts for ridge caps, ridge bands, verges, angles, valleys
• Quick preparation of sheets before installation or folding
• Compatible with steel pan
from Joris Ide, Arcelor, Bacacier, Unimetal, etc.
• Can be used in workshop or on construction sites
> Product plus:
- Simplifies the installation of ridge caps, verge flashings,
valleys and sheet ends - Clean, burr-free cutting, even on lacquered steel
- No deformation of the profile thanks to the adapted die
- Significant time savings in sheet preparation
- Compact and portable tool, ideal for site or workshop
- Proven robustness: welded steel structure and hardened blades
- Simple and safe to use, no electrical power needed
NB: product manufactured by JOUANEL Industrie
and part of the "manual machines" range
Product features
| Compatible profile type |
45mm trapezoidal steel pan |
|
| Rib height (mm) | 45 | |
| Cutting capacity – Galvanized steel (mm) | Up to 0.75 | |
| Cutting capacity – Pre-painted steel (mm) |
Up to 0.75 |
|
| Notch width (mm) |
80 at base – 25 at top |
|
| Notch depth (mm) |
45 |
|
| Operation type |
Manual lever |
|
| Cutting precision (mm) |
+/- 0.5 |
|
|
Blades |
|
|
| Replaceable |
Yes |
|
| Sharpenable | Yes | |
| Dimensions (L × W × H) (mm) | 570x130x150 | |
| Net weight (kg) | 6.270 | |
| Gencod | 3547710494455 |
